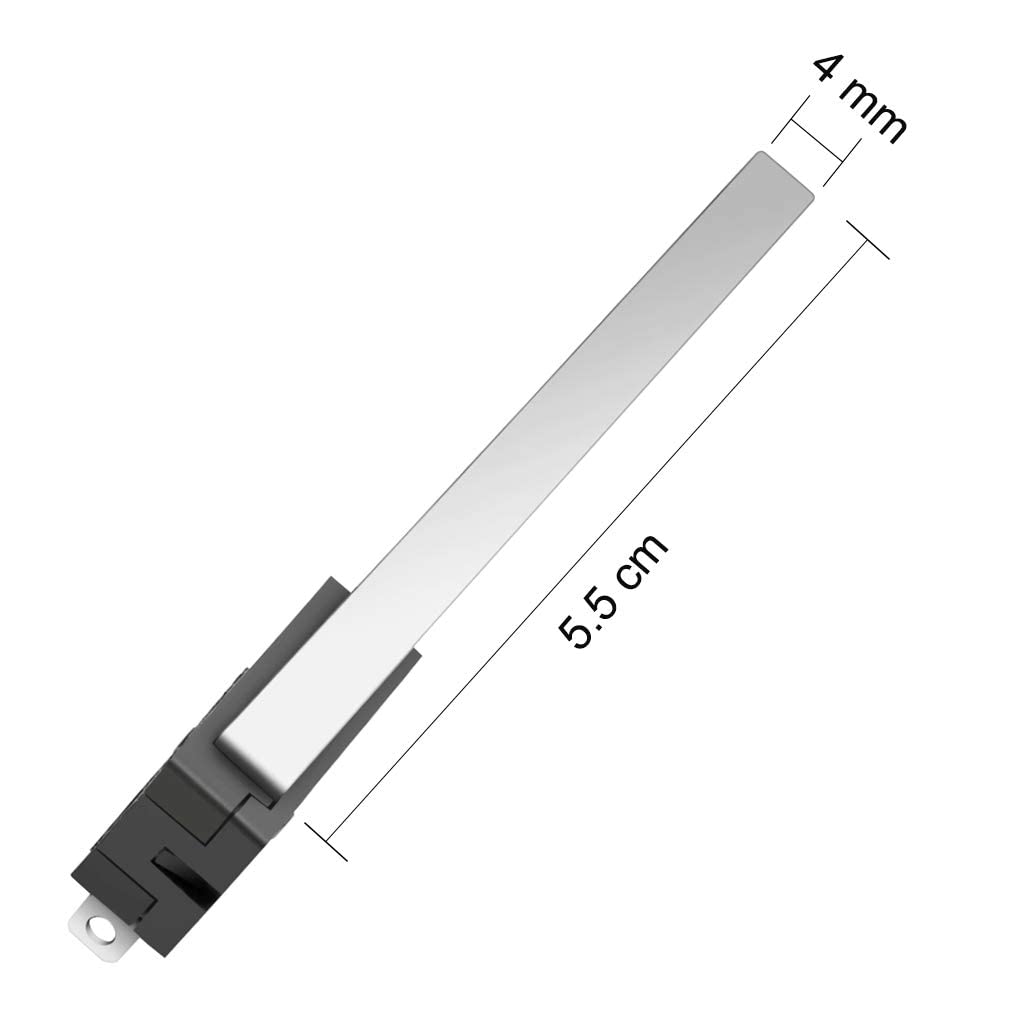

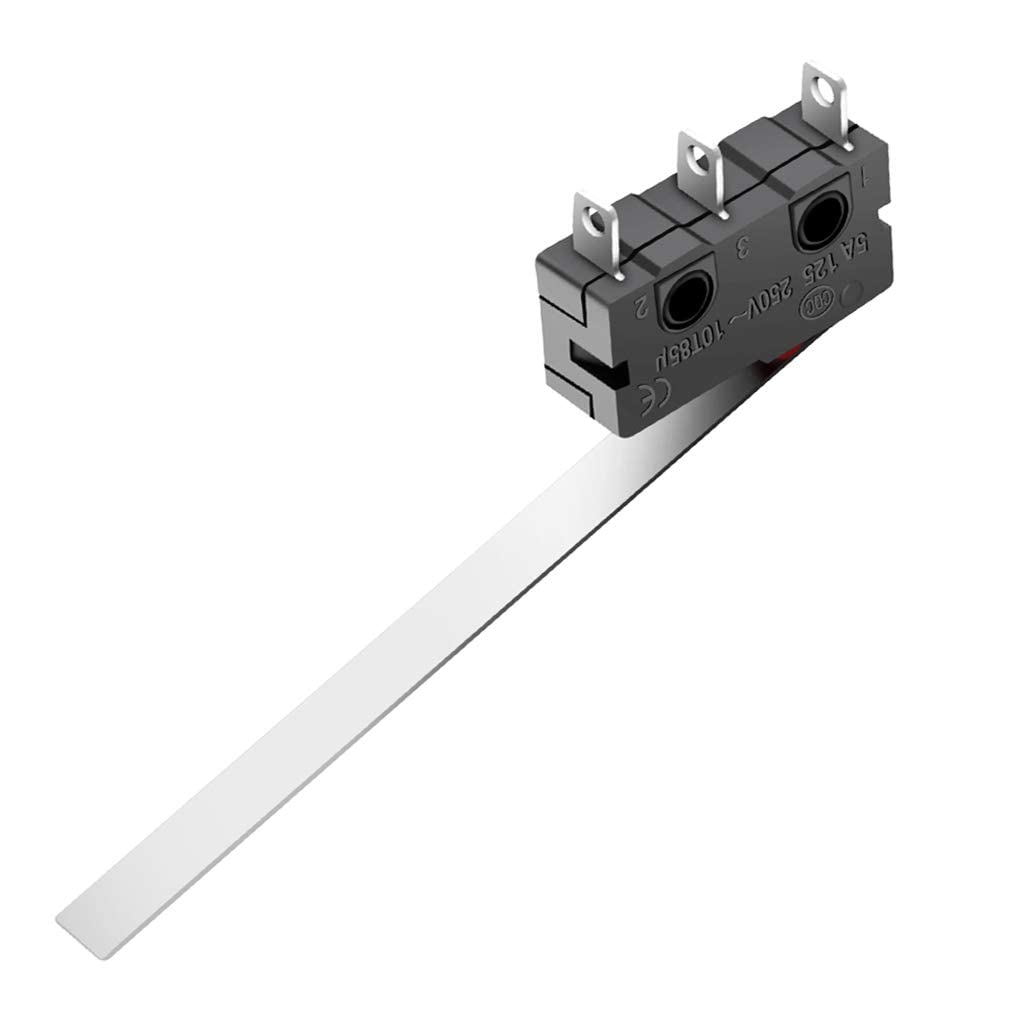

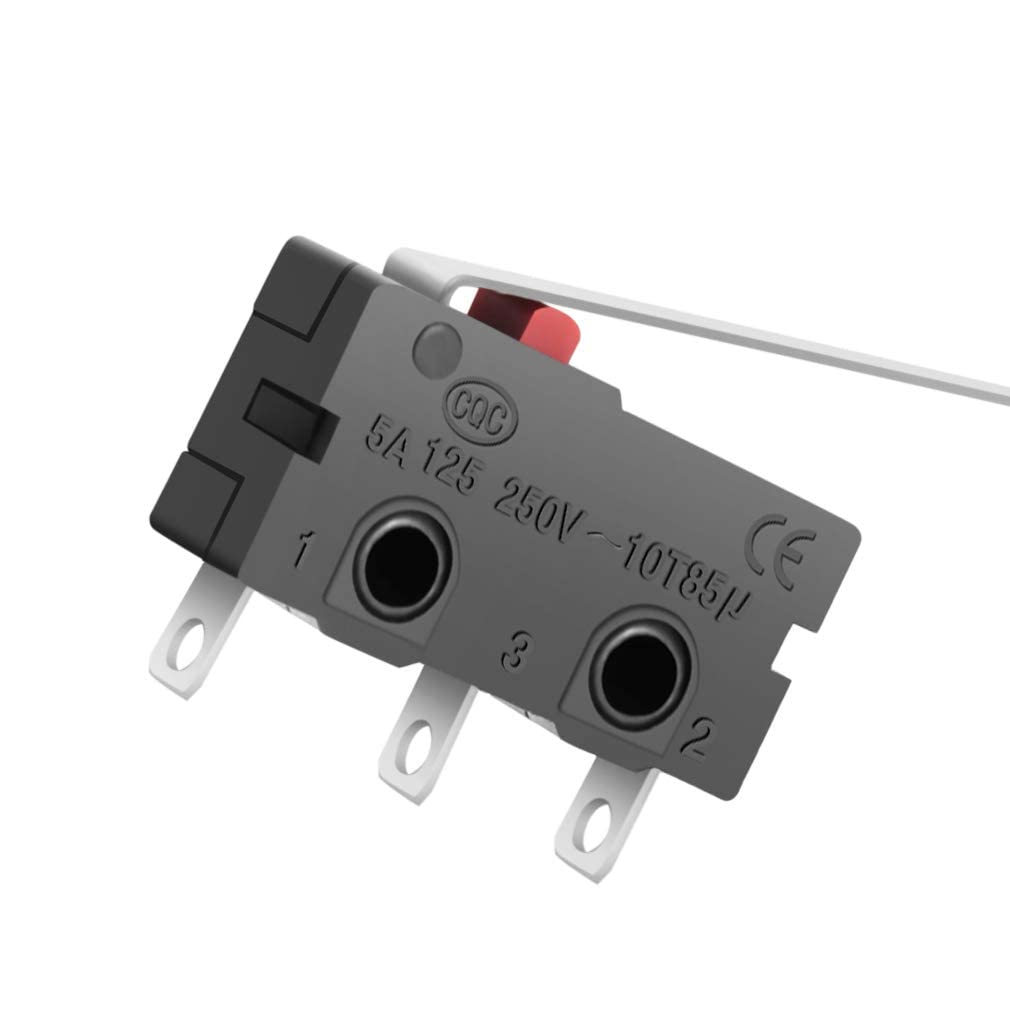

Micro Limit Switch, 2.2 Inch Micro Switch with Lever SPDT 1NO 1NC, 3 Pin Push Button Momentary Limit Switch AC 5A 125V 250V(12 Pcs)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 5 Amps
- Operating Voltage
- 250 Volts
- Contact Type
- Normally Open, Normally Closed
- Brand
- MXRS
Key features
- -Product Name: Micro Switch; Actuator Action: Momentary; Actuator Type: Hinge Lever; Contact Configuration: 1NO,1NC(SPDT)
- -Excellent touch switches,long service life. Life expectancy:More than 500000（Life expectancy at switch testing machine for a continuous period of work,operating at frequencies below 60 times per mimute,the working conditions:DC 40V,50mA.）
- -Pin-type package with plastic to prevent infiltration of welding pine fragrance.
- --Environmental Condition of utilization: Temperature -25~65℃；Relative humidity:below 85%; Rate Voltage: 125V 250V AC; Rated Current:5A.
- -Used in home appliances, audio, toys, mouse, business machines, communication equipment and other electronic equipment.
Specifications
| Operation Mode | Push Button |
|---|---|
| Current Rating | 5 Amps |
| Operating Voltage | 250 Volts |
| Contact Type | Normally Open, Normally Closed |
| Brand | MXRS |
| Switch Type | Push Button |
| Terminal | Button,pin |
| Material | Other |
| Mounting Type | Snap In Mount |
| Actuator Type | hinge lever,push button |
| Package Dimensions | 5.28 x 2.87 x 0.59 inches; 1.13 Ounces |
| Manufacturer | MXRS |
| ASIN | B08NWTRWTB |
About this product
Technical Specifications: Product Name: Micro Limit Switch Contact Type: 3 Pins 1 NC 1 NO Product Certification:ROHS Package including: 12 X Black limit switch lever arm SPDT. Electrical Charactristics: 1. Model: KW11-3Z-2 2. Material : Plastic, Metal. 3. Voltage: AC 125V 250V. 4. Max. Current: 5A. 5. Contact Resistance: Max.25Mohm . 6. Insulation Resistance:Min.100Mohm(500V DC) 7. Switch lifetime:1,000,000 times. 8. Contact form: 1NO 1NC. 9. Size : 20 x 6 x 10mm. or 0.8" x 0.2" x 0.4" (L*W*H). 10. 100% brand new and high quality. 11.Insulation Resistance: ≧ 20mΩ 12.Contact Resistance: ≦ 50mΩ
