DSLRKIT Active PoE Splitter Power Over Ethernet 48V to 5V 2.4A Compliant IEEE802.3af

Specifications

About this product

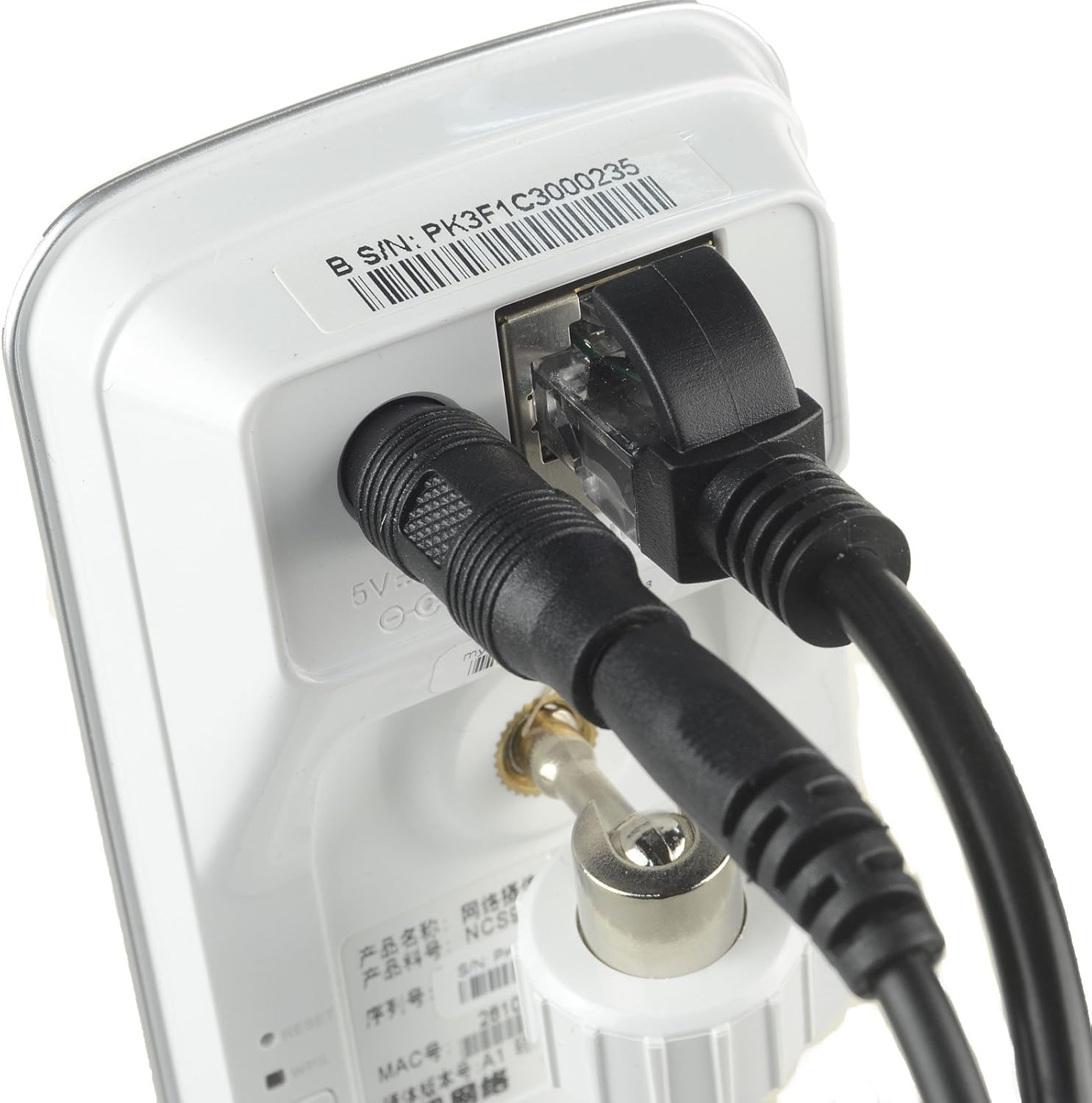

Notice: This POE Splitter is suitable for household IP camera with DC 5V power (as the kind in the photo of the instruction),it does not suit equipments with DC 12V power. Power Output Port: 3.5x1.35mm DC Power Plug (and 5.5x2.1mm DC power Plug by adapter). RJ45 female INPUT Port: Support the IEEE 802.3af the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Adapter Specification: Compliant with IEEE802.3af Isolation: 2.5kV Power Input: DC44~57V Power Output: DC5V 2.4A[inside positive (+) , outside negative (-)] Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE) Data Output Port: RJ45 Male Power Output Port: 3.5x1.35mm DC Power Plug (and 5.5x2.1mm DC power Plug by adapter). Data Transfer Rate: 10/100Mbps Devices will be detected before poe input Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Body size: 80 x 27x 22 mm DC cable length£º165mm RJ45 Modular Plug cable length£º155mm Weight : 55g Item Included: 48V to 5V Active PoE Splitter x1 3.5x1.35mm Female to 5.5x2.1mm Male DC port Adapter x1
