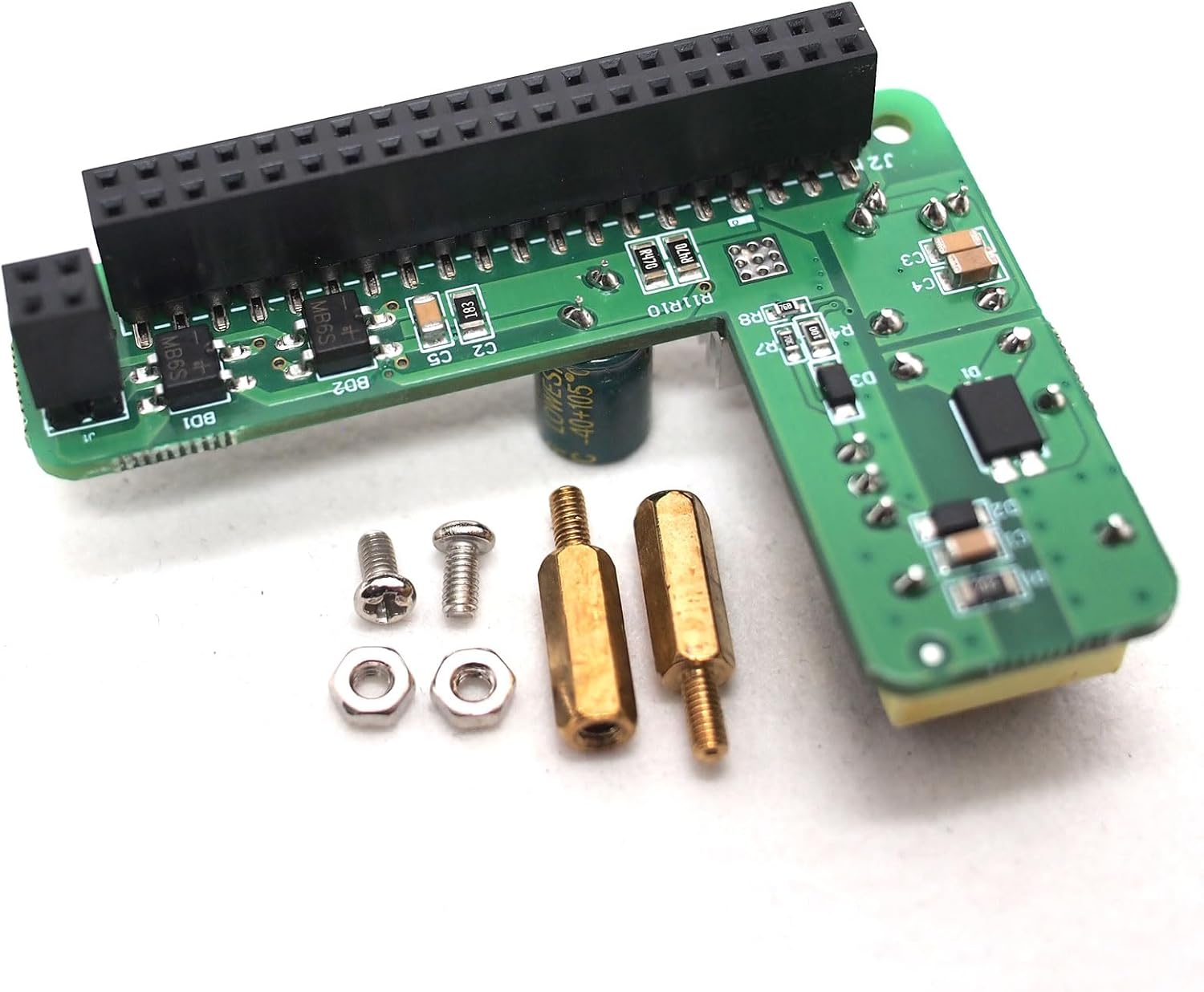

DSLRKIT Power Over Ethernet PoE HAT IEEE802.3af DC 5V 2.5A with 1.5KV Isolation for Raspberry Pi 4B 3B+ 3B Plus
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item model number
- 5V2.5A POE HAT
- Item Weight
- 0.705 ounces
- Product Dimensions
- 2.56 x 1.5 x 1.1 inches
- Item Dimensions LxWxH
- 2.56 x 1.5 x 1.1 inches
Key features
- Support the IEEE 802.3af/802.3at the Power over Ethernet PoE Switch
- Support 48V~57V Passive Power Over Ethernet PoE Switch；Support 48V~57V Passive Power Over Ethernet PoE injector
- Maximum.12Watt DC5V 2.5A
- With 1.5KV isolation
- Compatible unsolicited Passive PoE Switch
Specifications
| Brand | DSLRKIT |
|---|---|
| Item model number | 5V2.5A POE HAT |
| Item Weight | 0.705 ounces |
| Product Dimensions | 2.56 x 1.5 x 1.1 inches |
| Item Dimensions LxWxH | 2.56 x 1.5 x 1.1 inches |
| Voltage | 5 Volts, 48 Volts |
| Manufacturer | DSLRKIT |
| ASIN | B07JPXR9ZN |
About this product
Note: The product must be used in conjunction with a Raspberry Pi 4B 3B+ and a PoE switch (or PoE injector) Specification: Compliant IEEE802.3af PoE standard Support the IEEE 802.3af/802.3at the Power over Ethernet PoE Switch Support 48V~57V Passive Power Over Ethernet PoE Switch Support 48V~57V Passive Power Over Ethernet PoE injector Support Power sourcing equipment (PSE) Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Isolation: 2.5kV Power Input: DC38~57V Power Output: DC5V 2.5A Operation Temperatue:-10℃ ~ 75℃ Storage Temperature:-30℃ ~ 80℃ Item Included: DC5V 2.5A PoE HAT for Raspberry Pi 4B 3B+ x1 Plastic fixed column x2
